Ya: backlit keyboard - Rii Mini case study

Werner Almesberger werner at openmoko.org
Tue Jul 13 10:53:17 EDT 2010


I recently bought two Rii Mini RF keyboards:
http://www.ubergizmo.com/15/archives/2010/03/rii_mini_wireless_keyboard.html

One thing that impresses me with them is the very well-lit keyboard.
So I had a peek inside. This is how they did it:

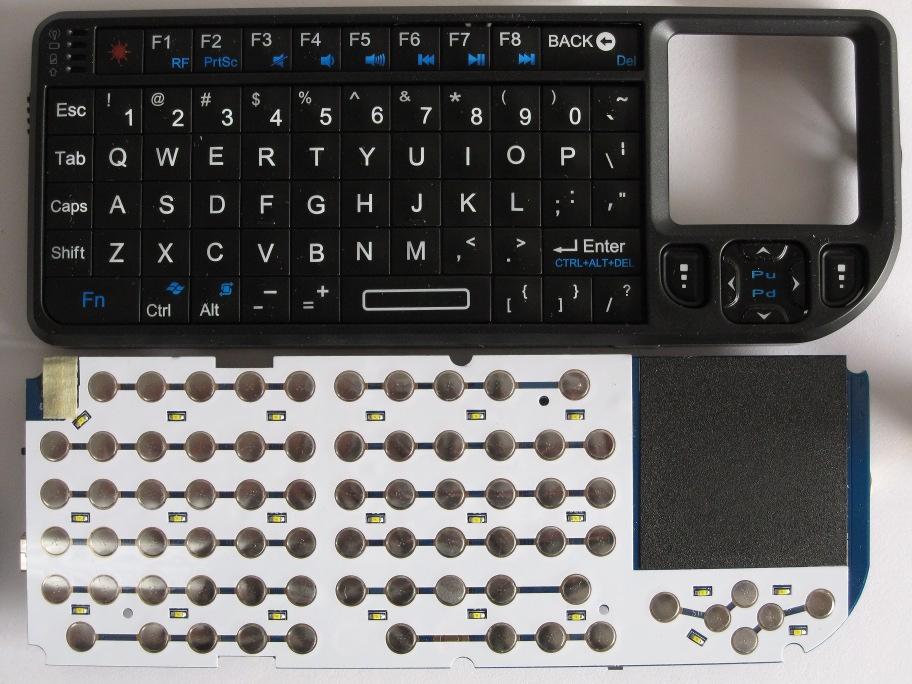

http://www.almesberger.net/misc/ben/rii-outside.jpg

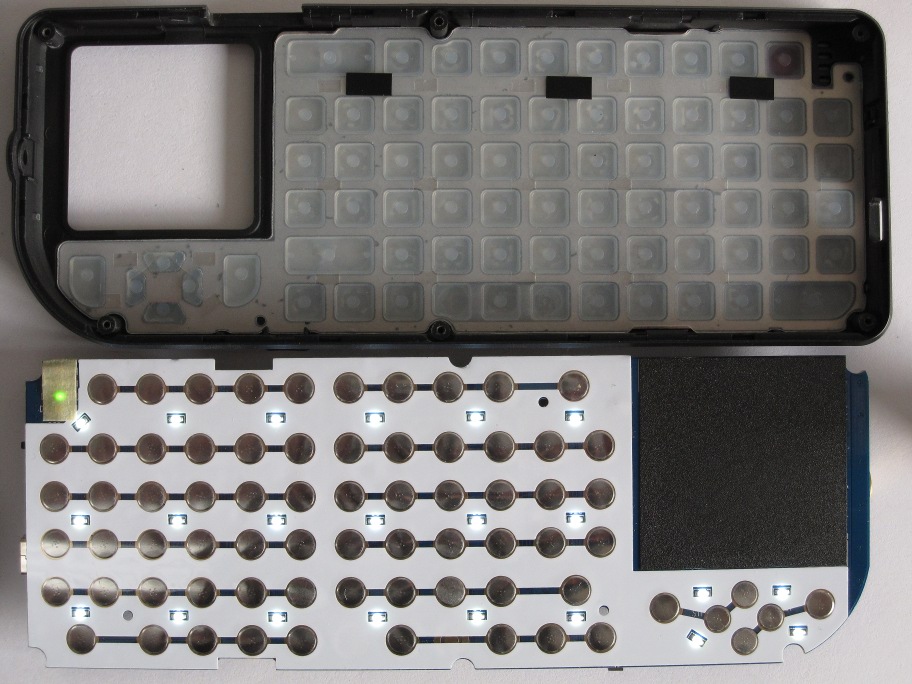

http://www.almesberger.net/misc/ben/rii-inside.jpg

There's one white LED every four buttons, plus a few extras for the
cursor keys. That's 22 in total.

By the way, the RF transceiver they use is a Cypress CYRF6936
(WirelessUSB, 2.4 GHz band.)
http://www.cypress.com/?docID=8979

- Werner
